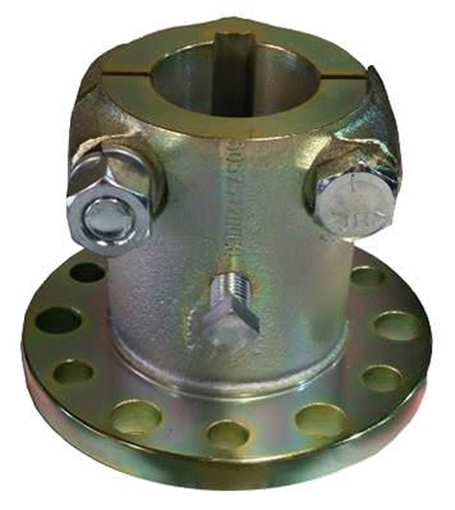

7-1/4″ Split coupling for Newage marine transmissions.
- 7-1/4″ flange diameter
- 6″ bolt circle
- (6) 5/8″ bolt holes
- 3-3/4″ male pilot ring
- 4-3/8″ length
- Includes flange bolts and set screws
Split couplers are cast from ductile iron and precision machine to SAEJ specifications.
All couplers must be fit and faced to the propeller shaft.
